Introduction
NVIDIA’s GeForce RTX 5060 Ti GPU video cards have launched as of March sixteenth, 2025, and today now we have the brand new GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G graphics cards to try. The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16GB can have an MSRP of $529.99 from GIGABYTE, and notably is a 16GB GDDR7 VRAM model also with a factory overclock boost of 2647MHz out-of-the-box. This will likely be our first introduction and first look review of the brand new GeForce RTX 5060 Ti GPU in 2025, but more importantly, the 16GB VRAM capability model of this GPU, quite than the 8GB model, which can be launching alongside the 16GB models.
NVIDIA GeForce RTX 5060 Ti
Before we dive into the GIGABYTE video card specifically, let’s go over what’s recent concerning the NVIDIA GeForce RTX 5060 Ti GPU. The GeForce RTX 5060 Ti follows in the brand new GeForce RTX 50 series GPU lineup, all based on the NVIDIA Blackwell GPU architecture, which launched in the beginning of 2025. This lineup began with the GeForce RTX 5090 at $1,999 MSRP, then was followed by the GeForce RTX 5080 at $999 MSRP, then it was followed by the GeForce RTX 5070 Ti at $749 MSRP, after which probably the most recent launch was the GeForce RTX 5070 at $549 MSRP.
The GeForce RTX 5060 Ti due to this fact follows under the GeForce RTX 5070 within the lineup, but can have two models or SKUs differentiated by the VRAM capability. There will likely be the GeForce RTX 5060 Ti 8GB GDDR7 models with an MSRP of $379, after which there will likely be the GeForce RTX 5060 Ti 16GB GDDR7 models with an MSRP of $429. The 2 GPUs remain the exact same in specifications and clock speeds, with the one difference being one with 8GB of GDDR7 and one with 16GB of GDDR7 memory, each on a 128-bit memory bus. If we compare this to the last generation, the GeForce RTX 4060 Ti 8GB had an MSRP of $399, and the GeForce RTX 4060 Ti 16GB had an MSRP of $499; due to this fact, technically, this next generation is ‘lower in MSRP’.
The NVIDIA GeForce RTX 5060 Ti GPU relies on NVIDIA’s GB206 die and manufactured on TSMC N4P 4nm. It comprises 36 SMs with 128 CUDA Cores per SM. Whenever you add all this up, the NVIDIA GeForce RTX 5060 Ti has 4,608 CUDA Cores, 144 fifth Gen Tensor Cores, 36 4th Gen RT Cores, 48 ROPs, and 144 Texture Units. The L1 Data Cache/Shared memory size is 4,608KB, and the L2 cache size is 32MB. The GPU Boost Clock is ready at 2572MHz. Memory consists of 8 or 16GB of GDDR7 on a 128-bit memory bus at 28Gbps, giving it 448GB/s of memory bandwidth. The TDP is 180W. While the GeForce RTX 5060 Ti supports PCI-Express 5.0, it runs with x8 lanes, as a substitute of x16.
GIGABYTE Gaming GeForce RTX 5060 Ti Graphics Card GV-N506TGAMING OC-16GD
GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G
GIGABYTE is offering many alternative flavors of GeForce RTX 5060 Ti video cards on its RTX 5060 Ti product page in each 8GB and 16GB versions. On the top-end, GIGABYTE will offer its AORUS ELITE line with a 5060 Ti 16G version. Below that’s the line we’re today, which is the GAMING OC line, wherein there will likely be an 8GB and 16GB RTX 5060 Ti, and now we have the 16GB model today. Below that’s GIGABYTE’s EAGLE OC line, AERO OC line, and at last a lonely WINDFORCE 8G model.
Within the GAMING OC line, GIGABYTE has the 5060 Ti GAMING OC 16G and the 5060 Ti GAMING OC 8G offered. Each of those video cards have the identical factory overclock and only differ within the VRAM capability and pricing. We’re reviewing the GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G with model number GV-N506TGAMING OC-16GD. This one has an MSRP of $529.99 and due to this fact, costs a premium over the NVIDIA MSRP of $429. Let’s take a take a look at what you get for that premium.
The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G design itself has a multi-layered visual approach, which supplies it a novel and varied surface material finish. You’ll see it in the photographs below, however the surface has texture to it; it’s not only smooth, it actually has a novel visual design. Using the GIGABYTE WINDORCE cooling configuration, you’ll find a mix of technologies. The Hawk Fan’s have a novel blade design to cut back air resistance and noise levels, there are a mix of things here, reminiscent of strips, lifted edges, and tiny surface mounds, all designed to enhance airflow quietly, they usually are also alternating spinning fans as well.
The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G can be designed with server-grade thermal conductive gel, which cools the VRAM and MOSFETs, which is superior to traditional thermal pads. The copper plate makes contact with the GPU and VRAM and utilizes composite copper heatpipes to transfer heat. There’s a big Screen Cooling on the video card with allows air to go through.
The RGB lighting area is exclusive with a sliding side plate that helps you to show the GIGABYTE name lit up, or simply a standard-looking RGB lighting pattern. Some very nice features are a DUAL BIOS and a switch with a silent mode. There’s also an LED on the ability connector to point if the ability cable is disconnected, or it should even blink if there may be an abnormal power supply. The video card also features GIGABYTE’s Ultra Durable power configuration with Ultra Cooling on MOSFETs, Metal Chokes, and longer life capacitors.
GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G Pictures
In a regular form box, you’ll find the GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G. Included accessories include just a fast guide, however the video card shouldn’t be heavy, so a GPU holder shouldn’t be obligatory. It also uses a regular PCI-Express 8-pin connector, so nothing fancy is required for this one. GIGABYTE recommends a 650W PSU.
Commencing, the GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G does offer a factory overclock with a lift clock set at 2647MHz in comparison with the reference clock of 2572MHz, giving it a 3% clock boost. The video card features GIGABYTE’s WINDFORCE cooling system, RGB lighting, a DUAL BIOS, and a custom design with a novel Sliding Side Plate. The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G measures 281mm in length (11 inches), 119mm in width, and 40mm in height, so this shouldn’t be a big video card. It has 3x DisplayPort 2.1b and 1x HDMI 2.1b.

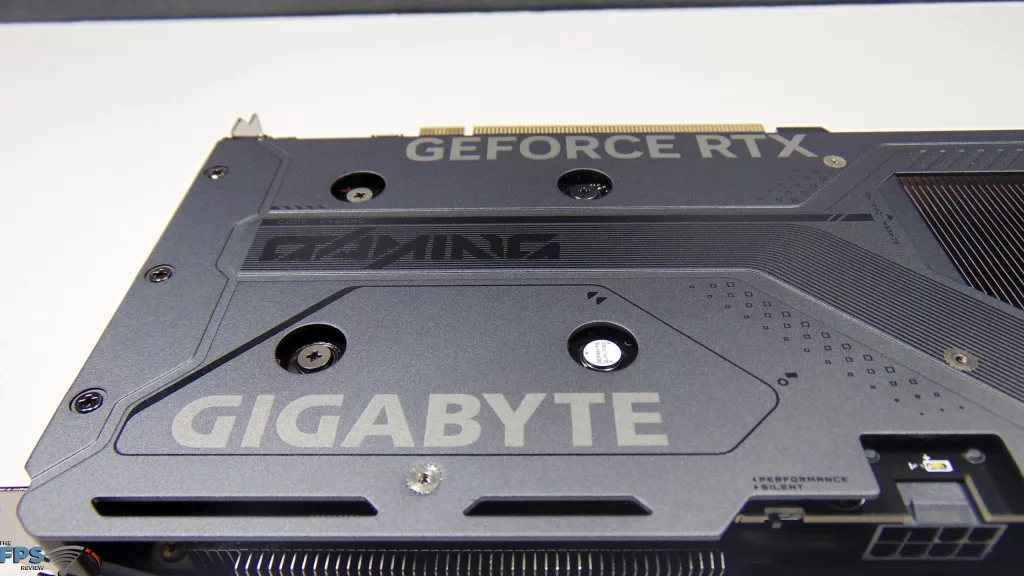

We will begin to go over the hardware construction of the GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G now, and we will see that it’s a triple-fan video card with a full metal backplate. The design is a bit monotone, but in our opinion, very appealing with the shades of coloring used, plus the materials and feel. You’ll be able to feel the unique texturing on the shroud; this multi-layered visual talked about is actually noticeable in person. The opposite thing that we actually find noticeable is how small the PCB for the video card is; in actual fact, a lot of the video card is definitely the heatsink extending past the PCB.
The WINDFORCE cooling system really does have small-bladed fans; they’re denser than most, but have a design that not only helps airflow but in addition just looks cool. The fans are sleeve bearing fans, but they use a graphene nano lubricant to increase their life, and it’s quieter than ball bearing fans. The special server-grade thermal conductive gel used is kind of intriguing, and the usage of it on the VRMs and VRAM, because it is applied, looks very interesting in GIGABYTE’s animation on their website. The big Screen Cooling on the backside is unobstructed, so air will travel very freely through it for efficiency.
The sliding side plate is an interesting feature. GIGABYTE describes it as allowing users to customize their construct to match their unique style. In practice, it allows the user to either have the GIGABYTE logo lit up, or reveal a non-descript RGB visual, which you’ll be able to see in the photographs below. The GIGABYTE GeForce RTX 5060 Ti GAMING OC 16G does use a regular PCI-Express 8-pin connector, in order that is great to see. Your complete video card can be reinforced with the metal backplate and I/O bracket.
GIGABYTE offers its GIGABYTE Control Center software which you could download, which is able to allow you to control RGB lighting and FAN controls as well. Within the screenshots below, you possibly can see that we will control the GIGABYTE RGB Fusion and make it do various things. Within the FAN Control, we will arrange customized fan curves, and within the Performance tab, you possibly can overclock, which we’ll take a look at on the subsequent pages.
